Price:
$13.33
Overview and Specifications:
| Product Attribute | |
|---|---|
|
Material : Other
|
RC Parts & Accs : Servos
|
|
Upgrade Parts/Accessories : Other
|
Remote Control Peripherals/Devices : Servos
|
|
Four-wheel Drive Attributes : Other
|
Tool Supplies : Assembly Category
|
|
For Vehicle Type : Cars
|
Model Number : NONE
|
|
Technical parameters : Value 2
|
Size : 10 * 7.5 * 2CM
|
|
Wheelbase : Screws
|
|
Specifications:
Brand: HOBBYFANS
Item: HOBBYFANS HF-S2225 Digital Servo
Operating voltage: 4.8 – 6.8V
Operating speed ( 6.0V ): 0.15 sec/60 degree
Operating speed ( 7.4V ): 0.13 sec/60 degree
Stall torque ( 6.0V ): 21kg/cm
Stall torque ( 7.4V ): 25kg/cm
Dead band: 3μs
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor

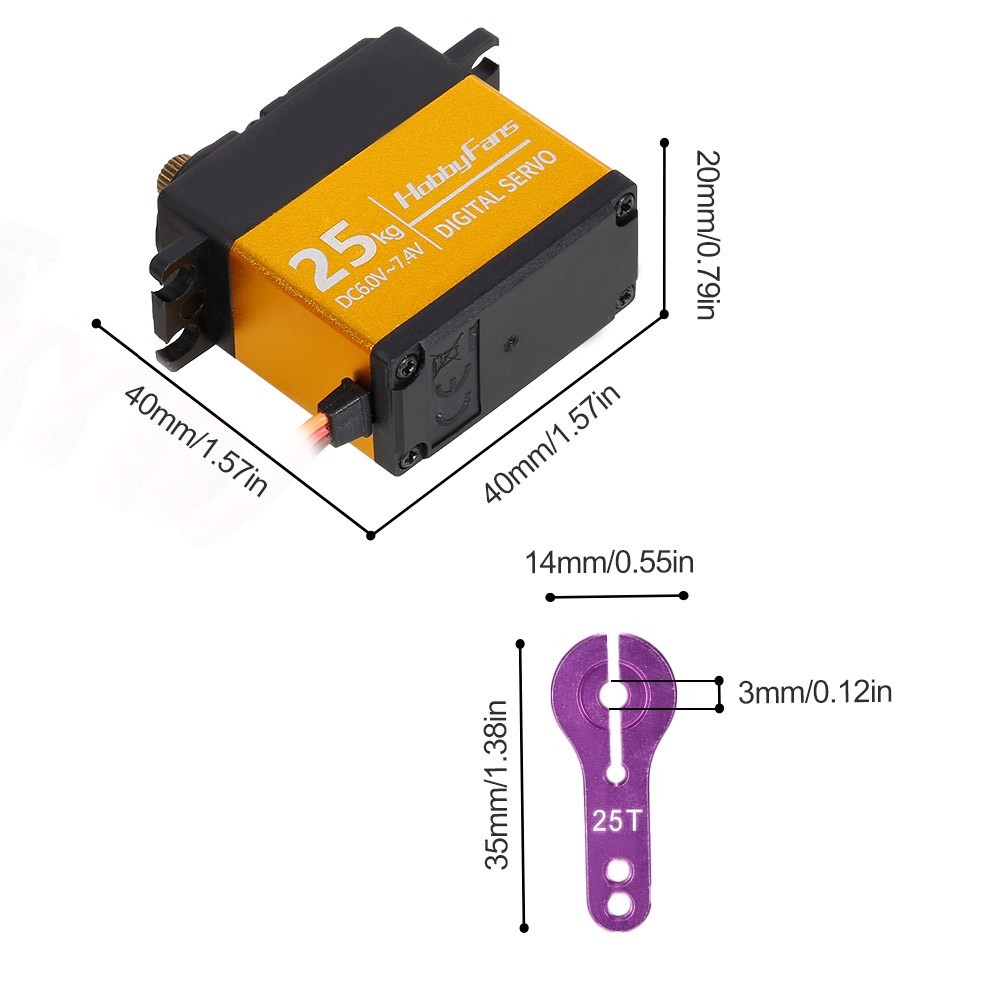

Size: 40 * 20 * 40.5mm
Weight: 67g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene
Package information:
Package size: 10 * 7.5 * 2cm / 4 * 3 * 0.78in
Package weight: 73g
Poly Bag package

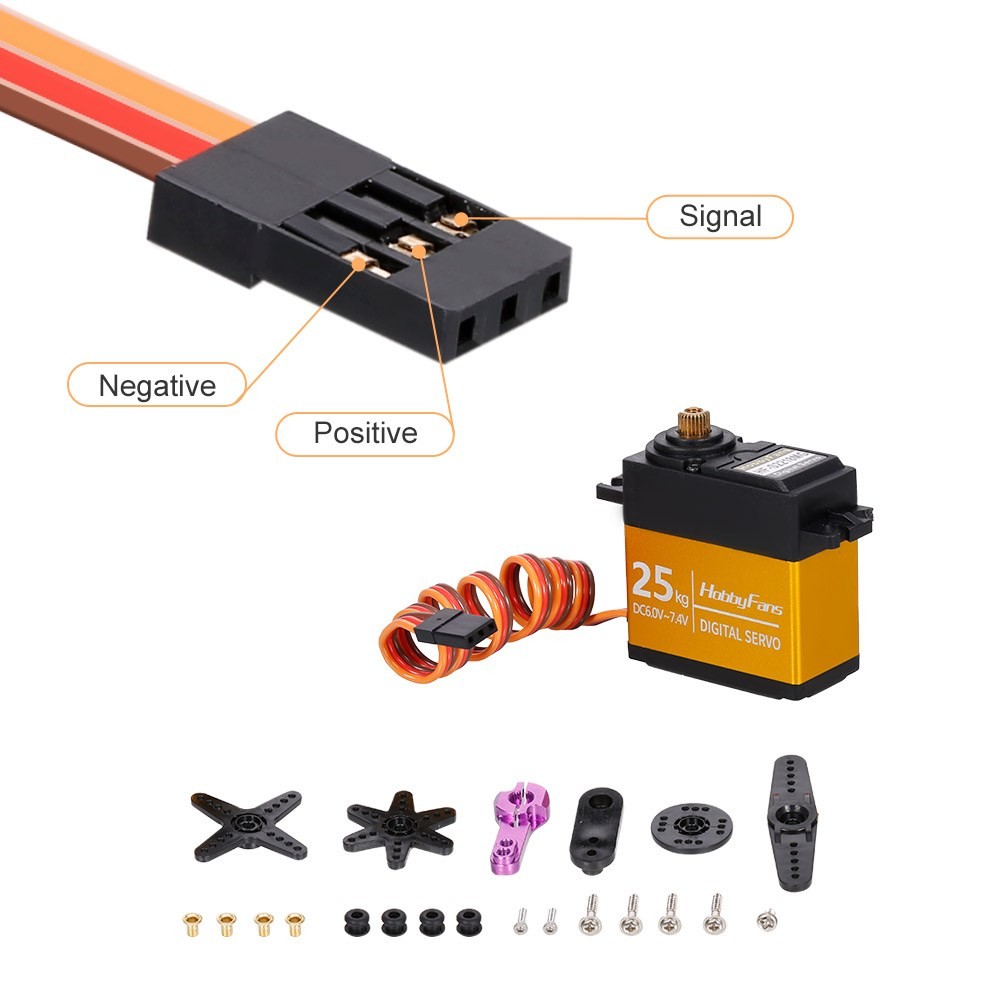

Package list:
1 * DS3225 25kg Digital Servo
1 * 25T Adjustable Metal Servo Arm
